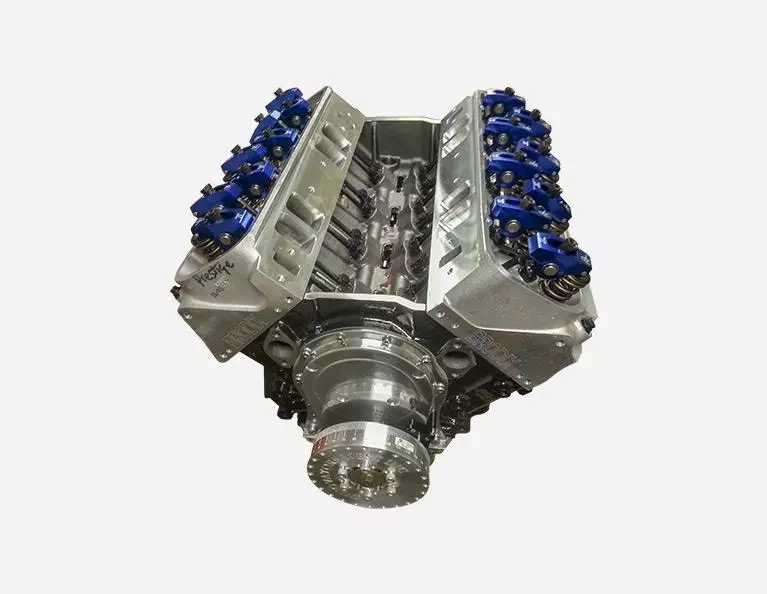

540 Boost Ready Long Block


Our 540 Big Block Chevy is the perfect combination to be built for boost. Already have a supercharger or turbos? This 540 long block is the perfect combination for you. This version is built to withstand up to 1,000 horsepower reliably. Looking to make more power, check out our B2 version.

Payment Plans Available!paytommorrow_logo 540 Chevy Big Block Boost Ready Long Block: C540-B1-LBGet Pre-Approved

Fuel Type

Fuel Type

Pump Gas


Idle Quality

Idle Quality

Best Use

Best Use

Horsepower: Capable of 1000
Torque: Up to 900
Bore/Stroke: 4.500 x 4.250
Compression: 9:1

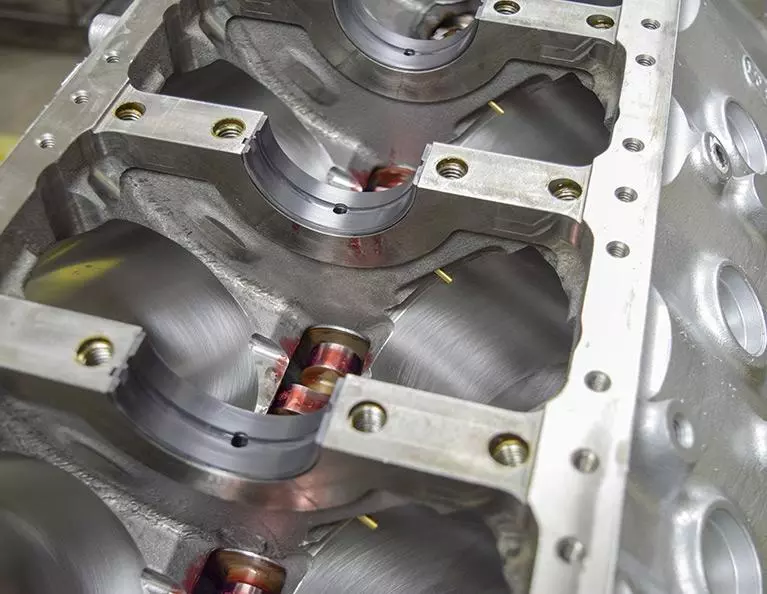

Block: Aftermarket 9.8" Short Deck, Iron
Crankshaft: 4340 Forged Steel
Rods: H-Beam, 4340 Forged Steel

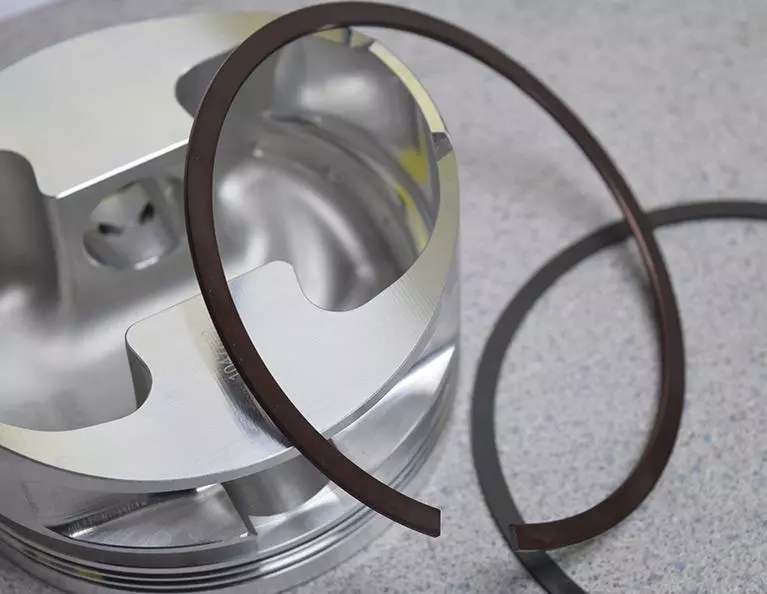

Pistons: 2618 Forged Aluminum 3cc Valve Relief
Bearings: King XP / Clevite H
Camshaft: Hydraulic Roller
Heads: AFR 357cc CNC Ported
Valves: Ferrea Super Alloy Exhaust, 6000 Series Intake

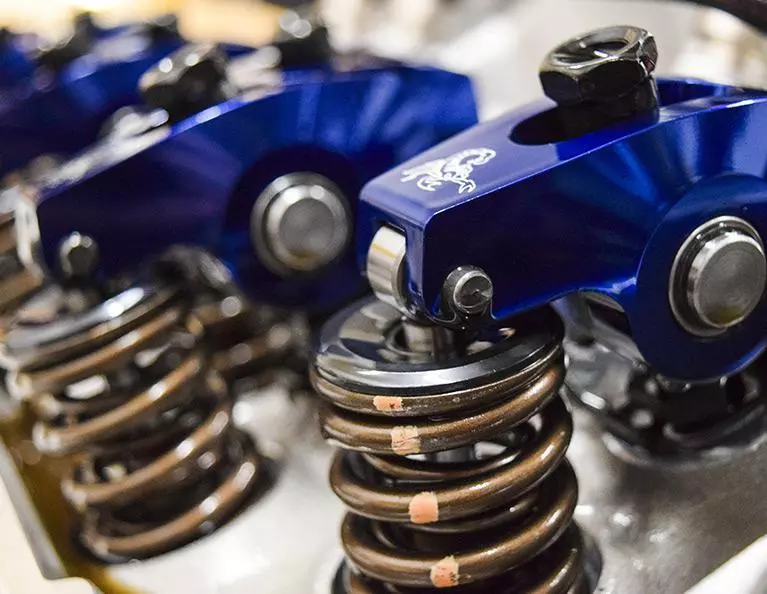

Rocker Arms: Billet Aluminum, Full Roller
Intake: Not Included
Oil Pan: Drag Race
Valve Covers: Polished Aluminum
Power Adder: Not Included
Fuel Delivery: Not Included
Ignition: Not Included
Dyno Testing Image

Dyno Testing

Dyno testing not included in long block price. Here at Prestige Motorsports, our “Dyno Promise” means that we dyno test every engine we build to verify the quality of our work, the integrity of each component, and the reliability of every engine we construct. Then, we deliver the dyno results for your project directly to you, the customer. Hours for dyno testing will be calculated with the purchase of the fuel and ignition group per engine order.

Engines will produce +/- 2% of advertised power at the flywheel. Advertised power levels are achieved using an electric water pump and specific induction and exhaust systems. Power will vary after pulley systems are installed or if changes are made to the induction or exhaust system (e.g. camshaft, cylinder head, compression, intake manifold, exhaust headers, air filters, etc.). Chassis dyno results measure power at the wheels and only calculate flywheel horsepower. Wheel horsepower is affected by a variety of vehicle-specific criteria including driveline design, body and chassis flex, air intake location, etc. Therefore, calculating flywheel horsepower from wheel horsepower is not an accurate representation of actual flywheel horsepower.

Warranty Image


This Prestige Motorsports engine is built to order and comes with a 3-year, unlimited miles warranty. Our warranty covers the base engine from intake manifold to oil pan.

Comparable Engines

Product: Current: 540 Boost Ready Long Block 540 Short Block 540 Long Block
Horsepower: Capable of 1000 Up to 1,000 Up to 2,500
Torque: Up to 900 Up to 900 Up to 1,500
Best Use: Street/Strip Street/Strip Race
Max RPM: 6,000 N/A 7,000
Idle Quality: Lopey N/A Radical
Bore/Stroke: 4.500 x 4.250 4.500 x 4.250 4.500 x 4.250
Block: Aftermarket 9.8" Short Deck, Iron Aftermarket 9.8 Deck, Iron Aftermarket 9.8 Deck, Iron + Steel Mains
Crankshaft: 4340 Forged Steel 4340 Forged Steel 4339 Forged, Callies Magnum
Rods: H-Beam, 4340 Forged Steel H-Beam, 4340 Forged Steel I-Beam, 4340 Forged Steel
Pistons: 2618 Forged Aluminum 3cc Valve Relief 2618 Forged Aluminum 3cc valve relief 2618 Forged Aluminum 3cc valve relief
Oil Pan: Drag Race Not Included Race
Camshaft: Hydraulic Roller Not Included Solid Roller
Heads: AFR 357cc CNC Ported Not Included Aluminum, CNC Rect Port
Intake: Not Included Not Included Not Included
Price: $16,499 Starting at $6,499 Starting at $22,999

Upgrades & Add-ons

Ready to upgrade your project? Add a kit from each area below to convert your base engine into a turn-key package. Kits come installed and dyno tested with your engine. Please note that not all of the options listed below are available for every engine. Contact us for more details.

Fuel Supply

Don’t waste time and frustration on that old carburetor. Fuel your engine with a dyno tested system for proven performance.

Ignition System

You'll need a top-notch ignition system for trouble-free performance. Let us customize one for you with everything needed to keep the spark alive.

Pulley Kits & Accessories

Pulleys drive vital components. Let us install a high-quality kit that keeps your engine running and provides max clearance for cooling systems. Available in multiple finishes!
