408 LQ9 Long Block

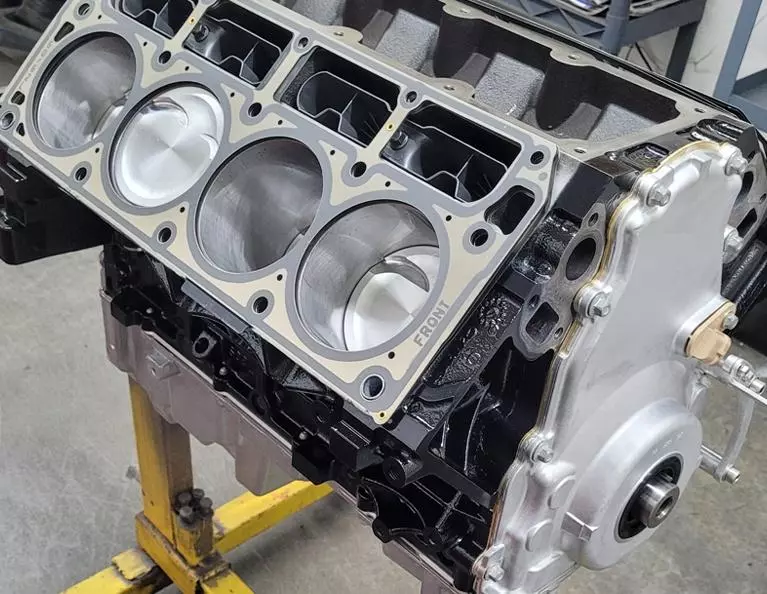

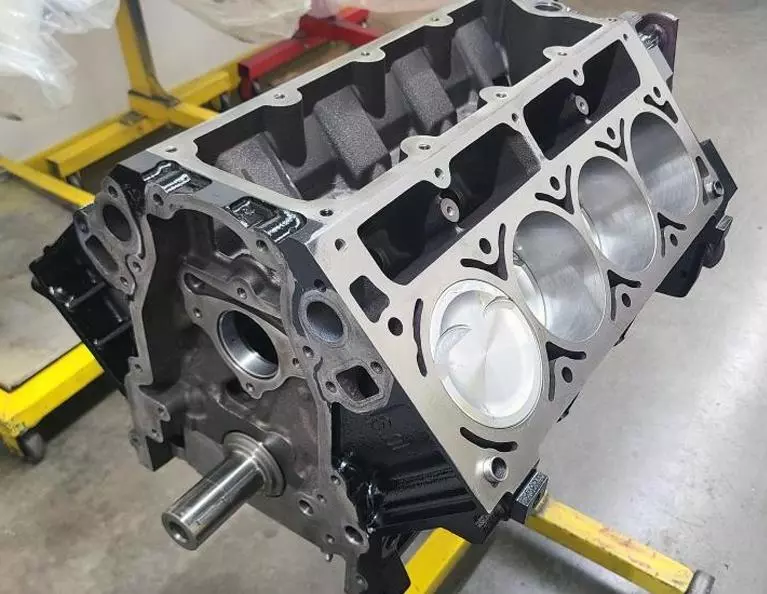

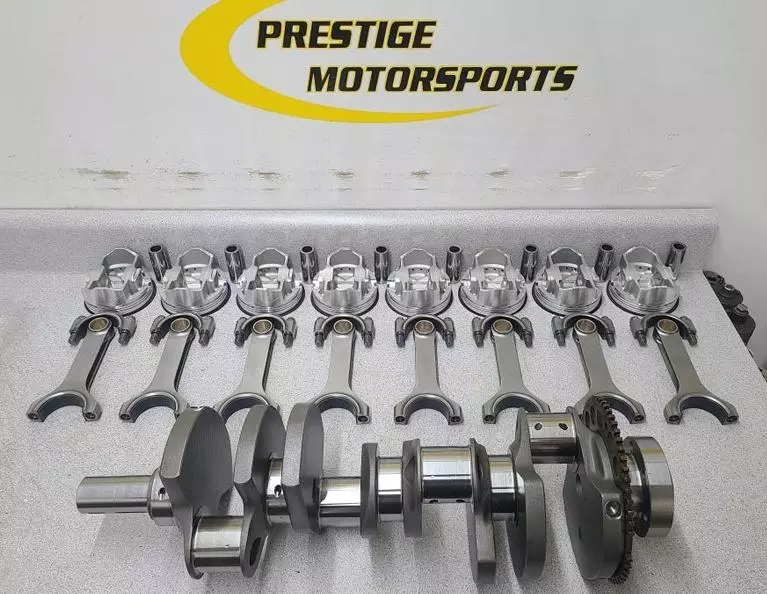

The ‘Forth Generation’ LS based engine stepped up the game in Small-Block Chevy Performance once again. Our 408 Cubic Inch hot-rod starts with a seasoned 6.0L High-Alloy Cast Iron LQ4 Block and a proven 4340 Forged Steel Crankshaft. Our 408cid uses a 4.0” Stroker (58x) Crankshaft and 4.030 Cylinder Bore. For strength, we use 4340 Forged I-Beam Rods and 10.7 to 1 Forged Pistons designed with the newest technology and Premium Piston Rings for light weight and low drag. Our Proprietary PM CNC LS3 Rectangle Port 255-cc Aluminum Heads deliver impressive power that is sure to deliver miles of very fast smiles. Hot Rod, Show-and-Go or Weekend Racer, this engine will exceed expectations.
Payment Plans Available!
Get Pre-Approved
Fuel Type
Max RPM
Idle Quality
Best Use
| Horsepower: | 575+ |
|---|---|
| Torque: | 500+ varies with camshaft |
| Bore/Stroke: | 4.030 x 4.000 |
| Compression: | 10.7:1 |
| Fuel Type: | Premium Pump Gas |
| Block: | Iron 6.0L, Reconditioned |
| Crankshaft: | 4340 Forged Steel |
| Rods: | 4340 Forged H-Beam |
| Pistons: | 4032 Forged Aluminum |
| Bearings: | King XP |
| Camshaft: | Hydraulic Roller |
|---|---|
| Heads: | Aluminum LS3 - CNC Ported |
| Valves: | 2.165 / 1.590 |
| Rocker Arms: | Steel / Roller Trunion Upgrade |
| Intake: | Not Included |
| Oil Pan: | Chevy Performance Muscle Car |
| Valve Covers: | Not Included |
| Power Adder: | Not Included |
| Fuel Delivery: | Not Included |
| Ignition: | Not Included |
Dyno Testing
Dyno testing not included in long block price. Here at Prestige Motorsports, our “Dyno Promise” means that we dyno test every engine we build to verify the quality of our work, the integrity of each component, and the reliability of every engine we construct. Then, we deliver the dyno results for your project directly to you, the customer. Hours for dyno testing will be calculated with the purchase of the fuel and ignition group per engine order.
Engines will produce +/- 2% of advertised power at the flywheel. Advertised power levels are achieved using an electric water pump and specific induction and exhaust systems. Power will vary after pulley systems are installed or if changes are made to the induction or exhaust system (e.g. camshaft, cylinder head, compression, intake manifold, exhaust headers, air filters, etc.). Chassis dyno results measure power at the wheels and only calculate flywheel horsepower. Wheel horsepower is affected by a variety of vehicle-specific criteria including driveline design, body and chassis flex, air intake location, etc. Therefore, calculating flywheel horsepower from wheel horsepower is not an accurate representation of actual flywheel horsepower.
Warranty
This Prestige Motorsports engine is built to order and comes with a 3-year, unlimited miles warranty. Our warranty covers the base engine from intake manifold to oil pan.
